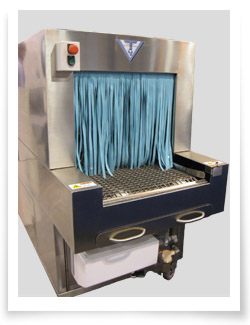

Misting Tunnel

The LE2020C & LE2828C Frontline Misting Tunnels

enable you to stop viruses before they enter your facility. Simply locate the totally portable (or fixed) unit to
receive all of your incoming animal crates, bedding, feed, etc. All of the items fed through the Misting Tunnel receive a fine mist of sanitizer providing complete coverage in 7 seconds!

Increasing the Productivity of Your Staff

Studies show that it takes over 2 minutes for your staff to completely sanitize each incoming item by hand-spraying.
The Misting Tunnel is not just a time-saver, it also eliminates the repetitive hand motion required when hand-spraying.
ensuring consistency

Consistent and complete coverage

Consistent and complete coverage is ensured since variations in employee techniques and capabilities are eliminated. It also reduces handling time required to sanitize by hand-spraying.

• Perfect to place in new construction or exisitng buildings
• Self-contained— can be used as a portable unit or fixed in place
• Fabricated of 304 & 316 stainless steel using wrapped, seamless construction
• Multiple spray nozzles ensure 100% coverage
• LE2020C and LE2828C have an improved internal clean out system
• Easy load end access for filling, draining, adjustments and maintenance
• 3 gallon capacity reservoir with visible level indicator can be set to recycle or not

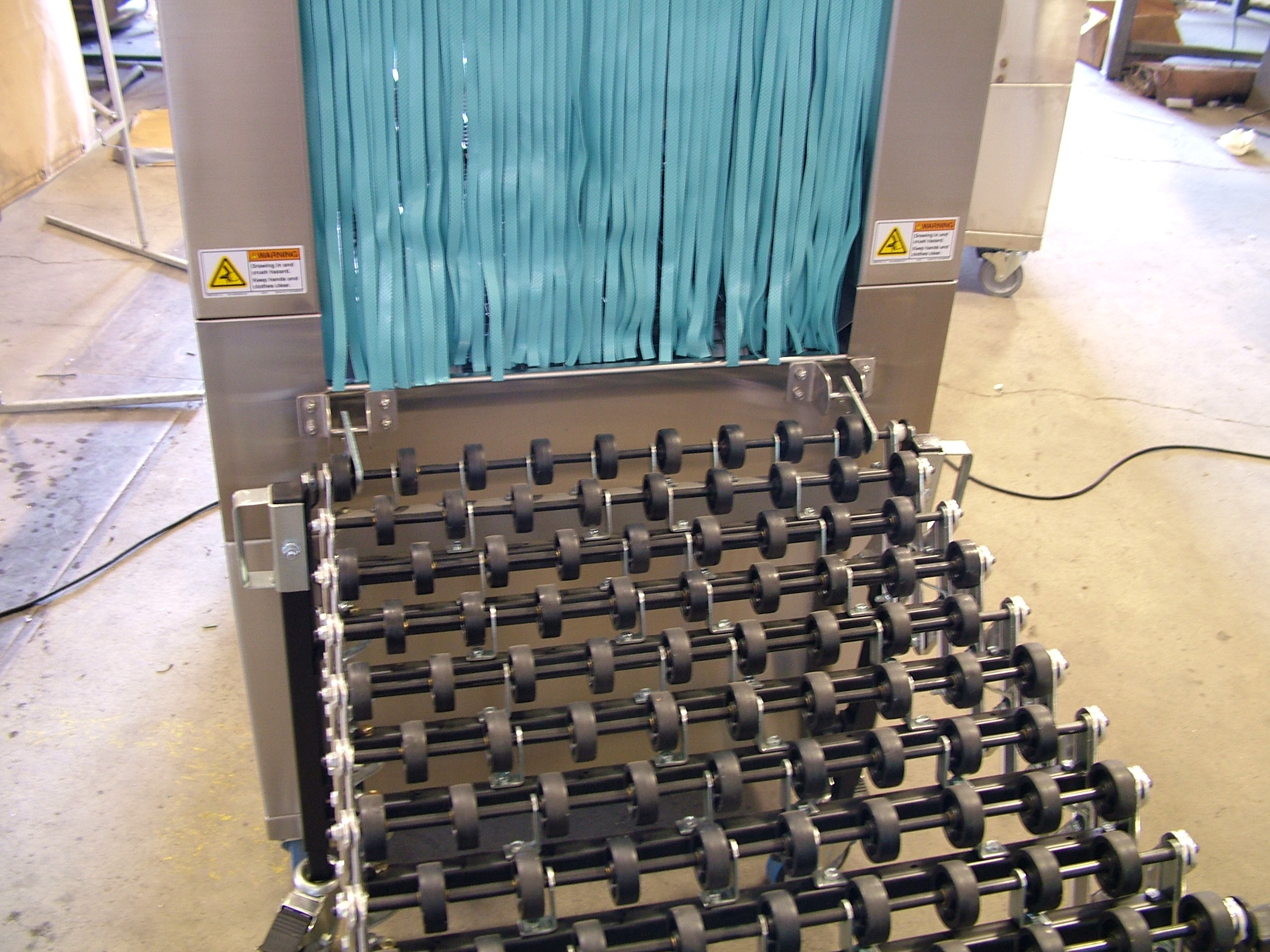

• Pitched roller off-load conveyor with attachment hooks expands from 2’ to 8’
• Heavy duty package stop to prevent items from falling off conveyor
• Optional Pass Through Door for “barrier” facilities creates a Misting Tunnel System

Machine Details & Placement Requirements:

The LE2020C Misting Tunnel has a 20”wide x 20”high work opening and the machine dimensions are 33”wide x 60”long x 59 1/2”high (excluding the off-load conveyor which is detachable). The total weight is approximately 300 pounds. The LE2828C Misting Tunnel has a 28”wide x 28” high work opening and the machine dimensions are 38”wide x 60 long x 67 ½” high (excluding the off-load conveyor, which is detachable). The total weight is approximately 400 pounds. When using the optional Pass-Through Door, the entire Misting Tunnel is located on the dirty side of the Pass-Through wall and the Off-Load Conveyor attaches to the Pass-Through on the clean side where the Pass-Through Door can be closed when not in use. A six foot allowance is recommended on either side of the Misting Tunnel to allow the machine to be maneuvered out if necessary for servicing.

New Feature:

The LE2020C and LE2828C Misting Tunnels have a dual clean-out tray that runs the entire width and length of the internal conveyor. The two-part, 16ga. 316 perforated Stainless Steel tray is linked and pulls out easily to enable you to effectively clean out debris that may collect under the conveyor. The trays can be dumped and rinsed and then slid easily back into place. The clean-out tray opening is located on the front of the load end with a gasketed, secured cover and pull handles.

Consturction:

The Misting Tunnels are fabricated using wrapped stainless steel construction. This gives it a seamless, smooth finish with fewer welds making it stronger and easier to clean. Due to issues that have developed over time with Type 304 Stainless Steel in the pan and upper housing, the upper housing, pan, piping, nuts, bolts, washers, etc. are now fabricated out of Type 316 Stainless Steel instead of Type 304. This significantly reduces the possibility of rusting in the areas that come into contact with the sanitizer.

• Download a Product Information Sheet
